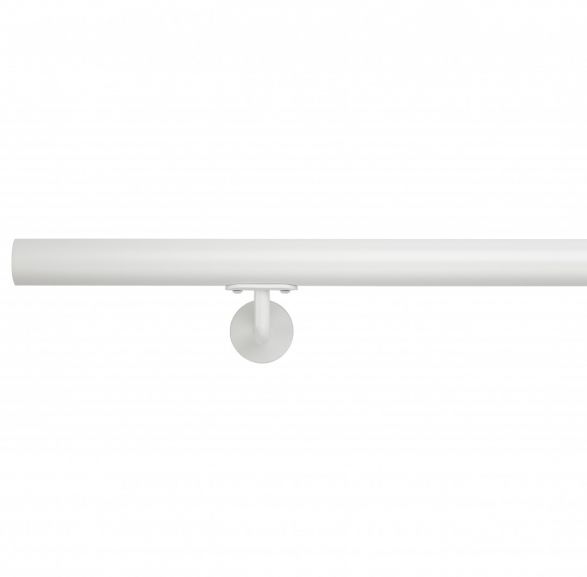

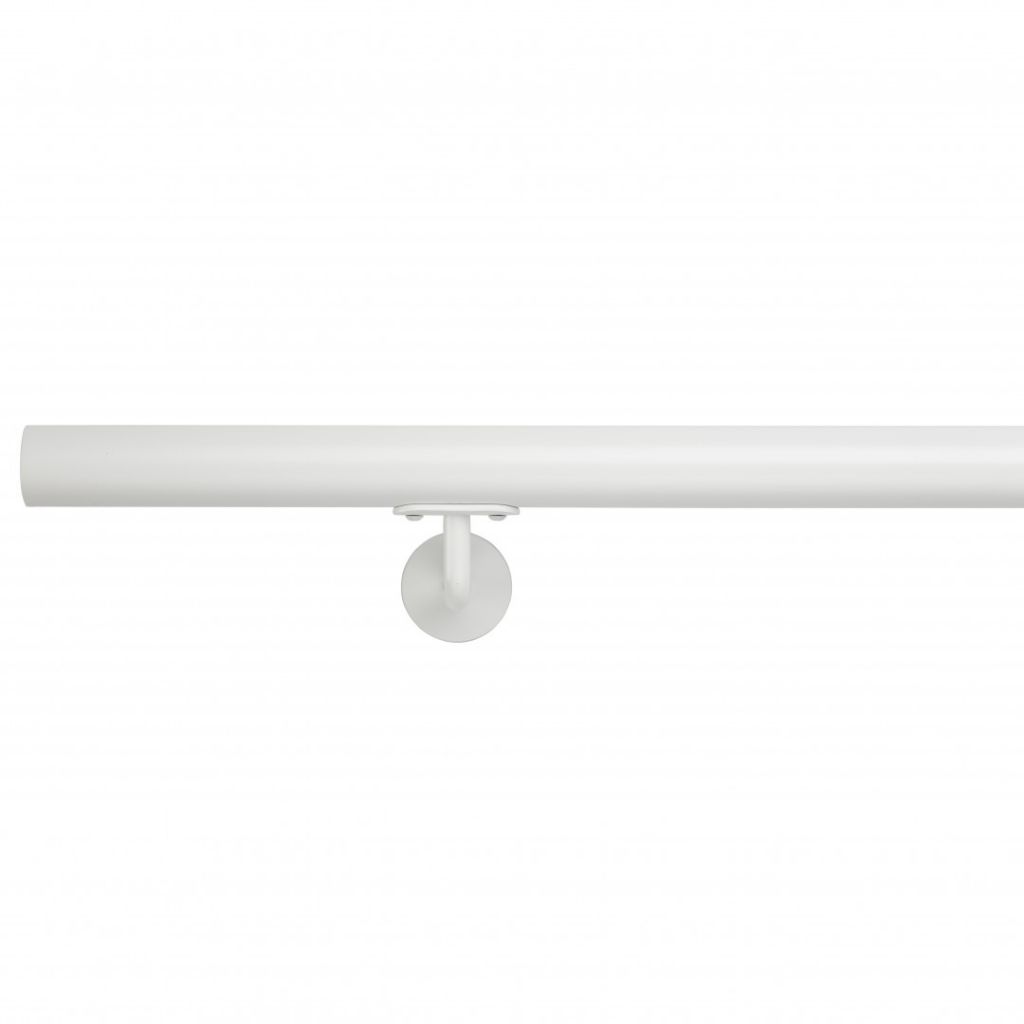

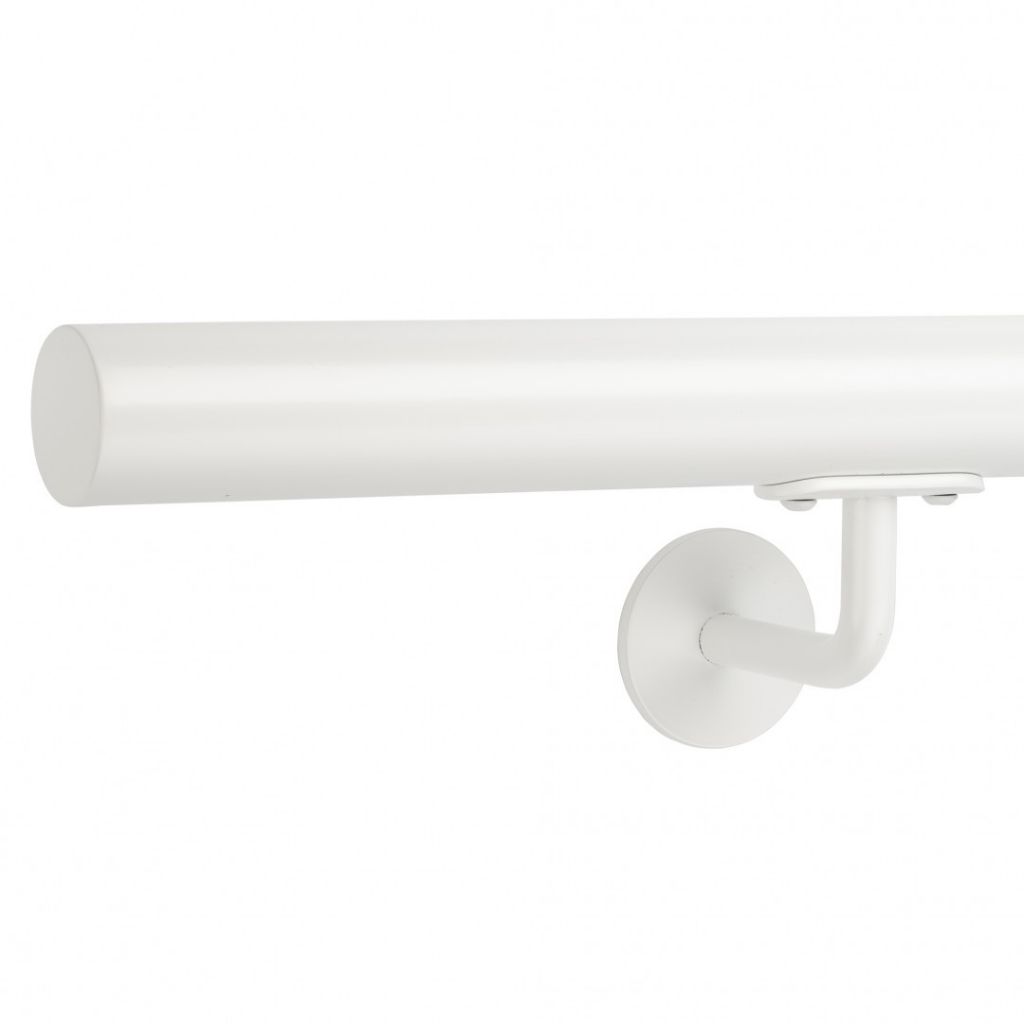

Round wall handrail fi 42,4 with flat cap white RAL 9016

Product description Handrail support

Complete set of stainless steel wall handrail with cap flat powder-coated white RAL 9016 smooth matt for self-assembly

Product description:

Material: stainless steel AISI 304
Hilt diameter: fi 42.4 [mm]
Tube wall thickness: 1.5 [mm]
Handrail supports for double-threaded screw or M8 rod
Rail terminated with flat caps
Includes screws to connect bracket to profile
Mounting threads made by FlowDrill thermal kneading

The handrails are manufactured on a CNC machine — ensuring us repeatability of the product and quality of workmanship.

During the painting process, aspecialized powder paint is used, which is evenly distributed over the surface by electrostatic spraying.

The resulting coating is not only extremely smooth, but also durable.

The threads for screwing the supports, are made using the FlowDrill thermal thread extrusion method which gives five to seven [mm] threads in the handrail wall, thus strengthening the assembly.

With competitors you get 1.5 [mm] of thread in the wall, made with a traditional drill and tapping tool.

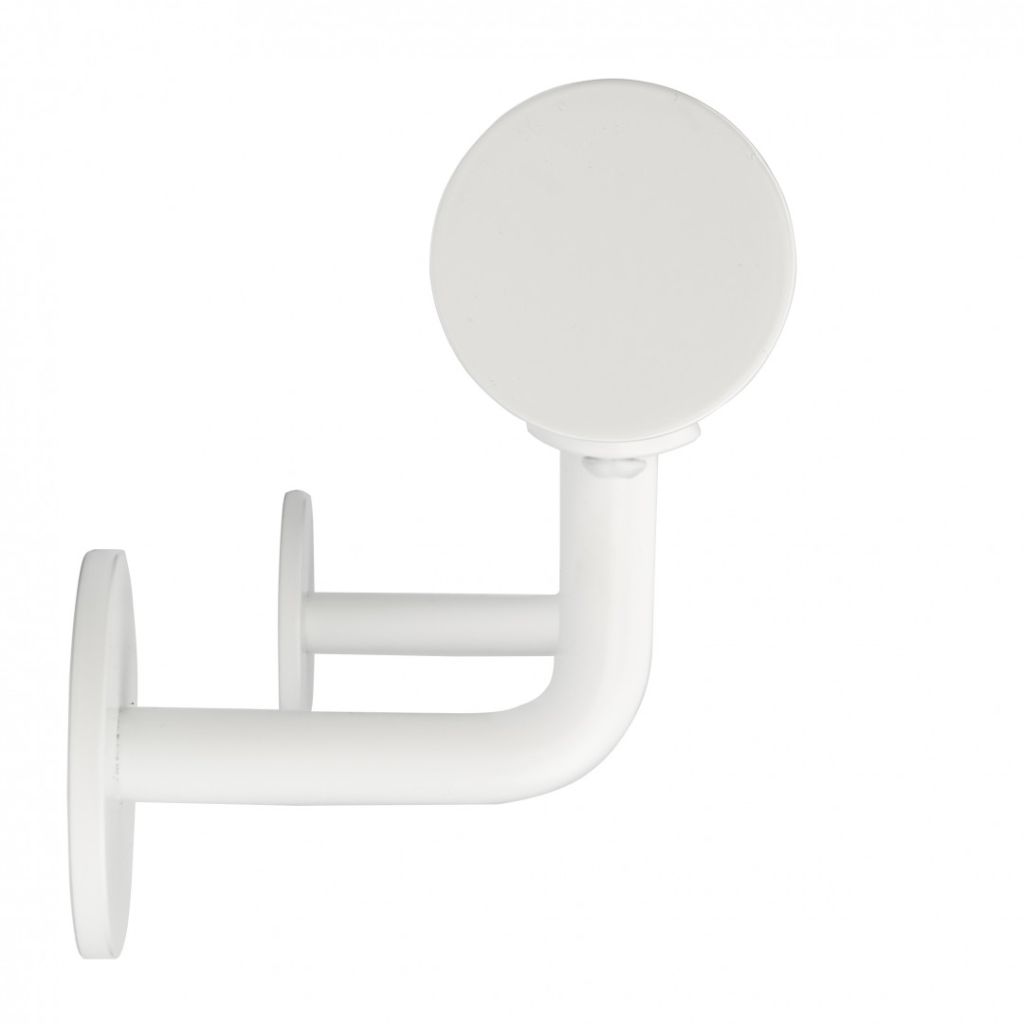

Handrail support mounted on an M8 screw already anchored in the wall or with a double-threaded screw for jersey or wood

Because of the variety of wall construction techniques of customers, the kit does not include mounting pins to attach the support to the wall.
